In the realm of metal casting, innovation continues to drive the evolution of traditional techniques. Lost-foam casting stands out as a modern and resource-efficient method that has gained prominence in various industries. This process involves the use of expandable polystyrene (EPS) foam patterns, which are coated with a refractory material and then replaced by molten metal. This intricate process involves creating complex metal parts by evaporating a foam pattern in a mold and replacing it with molten metal. In this blog, we will delve into the details of lost-foam casting, exploring its history, the step-by-step process, advantages, challenges, and its applications in diverse sectors.

History of Lost-Foam Casting

The roots of lost-foam casting can be traced back to the 1950s, with its development credited to the work of M.C. Flemings. However, it gained significant traction in the 1980s when the automotive industry began adopting this technique for manufacturing intricate and lightweight components.

The Lost-Foam Casting Process

  1. Pattern Creation: The process begins with the creation of a foam pattern, which serves as a replica of the desired metal part. This can be achieved using various methods, including cutting, molding, or 3D printing.
  2. Pattern Assembly: The foam patterns are then assembled into a cluster, forming a tree-like structure called the “foam tree.” This tree represents multiple patterns that will eventually become individual metal parts.
  3. Coating: The foam tree is coated with a refractory material to create a shell that can withstand the high temperatures encountered during the casting process. This refractory coating adds strength and stability to the mold.
  4. Evaporation: The coated foam tree is placed in a flask, and molten metal is poured into the mold. The heat from the molten metal causes the foam to evaporate, leaving behind a cavity in the shape of the desired part.
  5. Solidification: The molten metal fills the cavity, taking the shape of the foam pattern. Once solidified, the metal part is extracted from the mold.
  6. Finishing: The cast metal part undergoes finishing processes such as machining and surface treatment to meet the required specifications and quality standards.

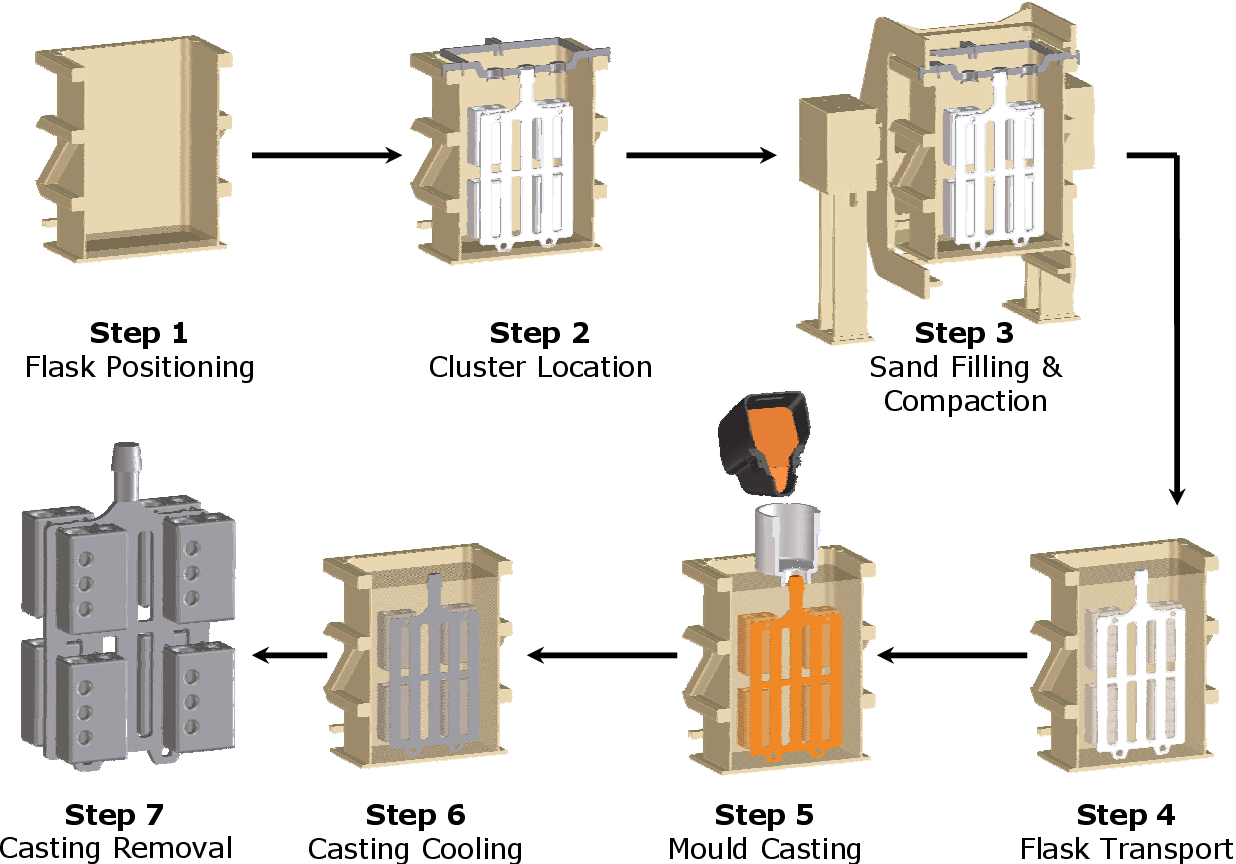

Lost Foam Casting Process



Advantages of Lost-Foam Casting

  1. Complex Geometries: Lost-foam casting allows for the production of intricate and complex metal parts with detailed features that may be challenging to achieve using other casting methods.
  2. Reduced Tooling Costs: Traditional casting methods often require expensive molds and tooling. In lost-foam casting, the foam patterns are more cost-effective to produce, leading to significant savings in tooling costs.
  3. Material Efficiency: This process minimizes material waste as the foam patterns can be recycled, contributing to a more sustainable and environmentally friendly manufacturing process.
  4. Weight Reduction: Lost-foam casting is particularly favored in industries like automotive and aerospace for its ability to create lightweight components, contributing to improved fuel efficiency and performance.

Challenges in Lost-Foam Casting

  1. Control of Porosity: Achieving a consistent and controlled level of porosity in castings can be challenging. Careful attention to the casting parameters is required to minimize this issue.
  2. Dimensional Accuracy: Maintaining precise dimensional accuracy can be a challenge, and factors such as foam pattern shrinkage must be carefully considered during the design phase.
  3. Pattern Fragility: Foam patterns can be delicate, and handling them with care is crucial to prevent breakage and ensure the success of the casting process.

Applications of Lost-Foam Casting

  1. Automotive Industry: Lost-foam casting is widely used in the automotive sector for producing engine blocks, cylinder heads, and other complex components.
  2. Aerospace Industry: The aerospace industry utilizes lost-foam casting to manufacture lightweight and high-strength components for aircraft and spacecraft.
  3. General Engineering: This casting method finds applications in various engineering fields for producing a range of intricate and customized metal parts.

Lost-foam casting stands as a testament to the constant evolution of manufacturing processes, offering a blend of precision, efficiency, and sustainability. As industries continue to seek innovative solutions, the versatility of lost-foam casting positions it as a valuable technique with a bright future in the world of metal casting.
