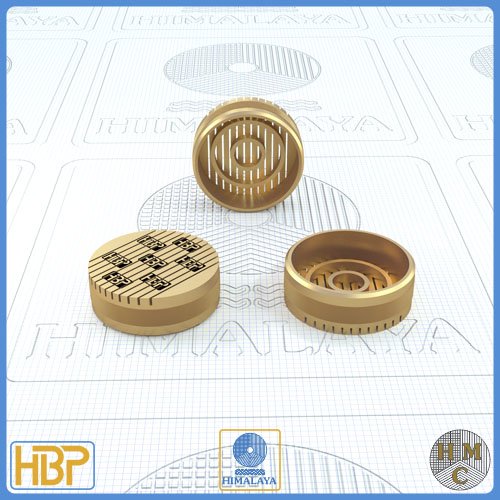

20mm Parallel Slotted Brass Core Vents

All Products

Image is for representation purpose only. Contact us for Technical Details.

Advantage:
  • Made from IS319 Grade-I Brass
  • Easy to remove from die due to soft nature of Brass
Customization Possibilities:
  • Diameter : 3mm to 40mm
  • Height : 6mm to 20mm
  • Head Thickness : 1mm to 10mm
  • Slot : 0.20mm to 0.80mm
If your requirement is different from standard offering, you can Contact us.
Opening Area Details:
Slot Size / Mesh NoSupport RingSlot CountOpening % of Vent SizeOpening % of Effective Diameter
0.221310.34%12.76%
0.321214.7%18.15%
0.421218.69%23.07%
0.521121.21%26.19%
*Note: Specifications are correct at the time of publishing. Advisable to re-confirm the specification at the time of ordering.
Support Type:
  • One Support Ring from 16mm Diameter
  • Two Support Ring from 20mm Diameter
Installation Method:
  • Knurled Vents are suitable for Press-Fit installation
  • Plain Vents are suitable for Screw-Fit installation but can be installed by Press-Fit too
