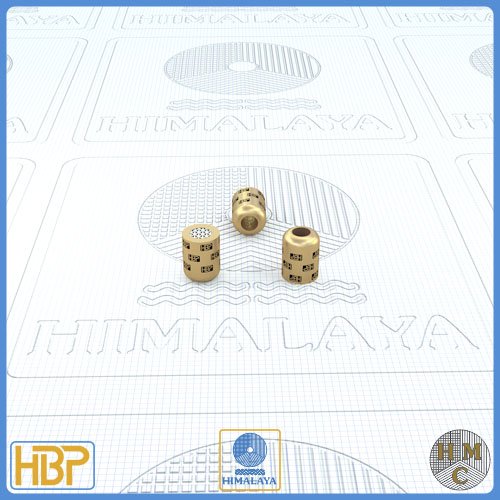

Image is for representation purpose only. Contact us for Technical Details.
Advantage:
- Near Flat Mesh surface for better core finish
- Available with Pin & Ring support as required
- Provides very high ventilation
Customization Possibilities:
- Diameter : 4mm to 25mm
- Height : 6mm to 10mm
- Head Thickness : N/A
- Mesh Size 0.10mm to 0.50mm
Opening Area Details:
Slot Size / Mesh No | Support Ring | Slot Count | Opening % of Vent Size | Opening % of Effective Diameter |
---|---|---|---|---|
25 | - | 25 | 13.49% | 53.94% |
35 | - | 35 | 13.1% | 52.41% |
40 | - | 40 | 10.62% | 42.5% |
60 | - | 60 | 7.5% | 29.99% |
Support Type:
- One Pin/Ring Support from 8mm Diameter
- Two Pin/Ring Support Ring from 16mm Diameter
Installation Method:
- Knurled Vents are suitable for Press-Fit installation
- Plain Vents are suitable for Screw-Fit installation but can be installed by Press-Fit too
