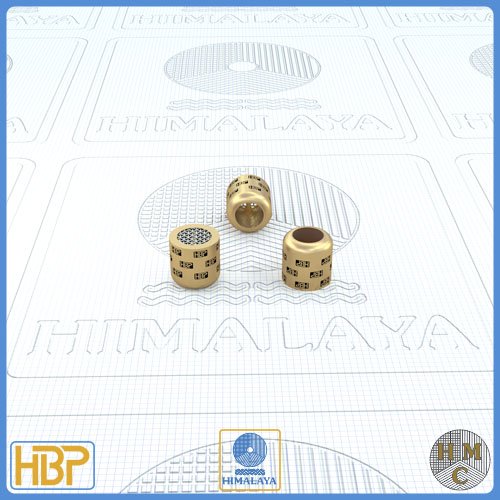

8mm Screen Mesh Core Vents

All Products

Image is for representation purpose only. Contact us for Technical Details.

Advantage:
  • Near Flat Mesh surface for better core finish
  • Available with Pin & Ring support as required
  • Provides very high ventilation
Customization Possibilities:
  • Diameter : 4mm to 25mm
  • Height : 6mm to 10mm
  • Head Thickness : N/A
  • Mesh Size 0.10mm to 0.50mm
If your requirement is different from standard offering, you can Contact us.
Opening Area Details:
Slot Size / Mesh NoSupport RingSlot CountOpening % of Vent SizeOpening % of Effective Diameter
25-2520.58%52.68%
35-3520.86%53.41%
40-4015.39%39.39%
60-6011.49%29.41%
25Pin2515.65%40.07%
35Pin3514.69%37.61%
40Pin4010.6%27.15%
60Pin607.85%20.11%
25Ring2516.38%41.93%
35Ring3517.2%44.02%
40Ring4012.89%33.%
60Ring6010.26%26.25%
*Note: Specifications are correct at the time of publishing. Advisable to re-confirm the specification at the time of ordering.
Support Type:
  • One Pin/Ring Support from 8mm Diameter
  • Two Pin/Ring Support Ring from 16mm Diameter
Installation Method:
  • Knurled Vents are suitable for Press-Fit installation
  • Plain Vents are suitable for Screw-Fit installation but can be installed by Press-Fit too
Related Products:
All Core Vents made of Brass
